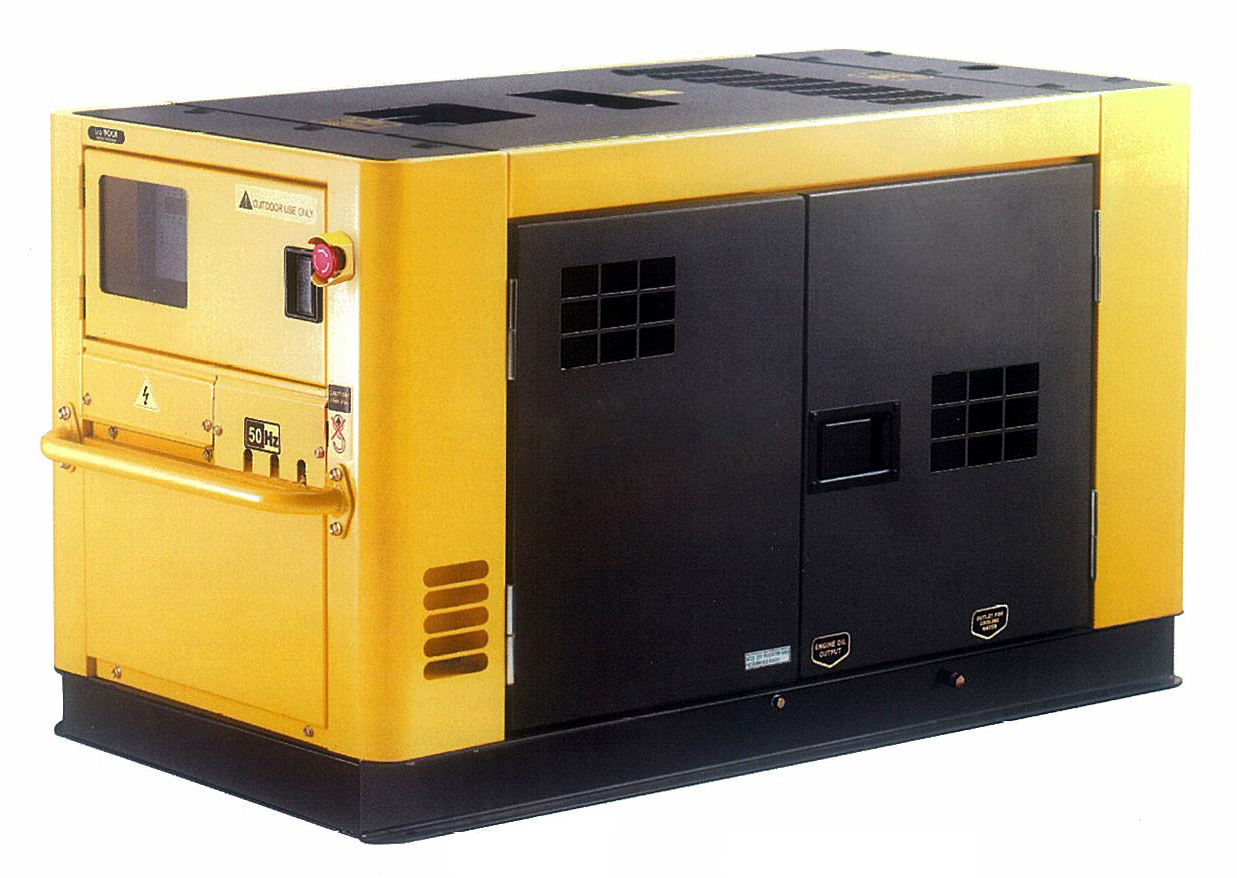

Model |
KHC16SS |
Rated frequency (Hz) |
50 60 |
Rate output (kVA) |
13 15.5 |
Max output (kVA) |
14.5 17 |
Rated voltage (V) |
115/230 120/240 |
Rated current (A) |
113/56.5 129.2/64.6 |
Rated rotation speed (rpm) |
1500 1800 |
Phase NO. |
Single phase |
Power factor |
1.0 |
Insulation grade |
F |
Pole number |
4 |
Excitation mode |
Brushless self-excitation and constant voltage (AVR) |
Panel type |
Digital Panel |
Output |
Voltage (V) |
115/230 120/240 |
| Receptacle |
Two single phase receptacles |
| Connection pole |
With |
| DC12V output |
Without |
Overall dimension: L*W*H (mm) |
1570*780*1050 |
Dry weight (Kg) |
720 |
Working assorting weight (Kg) |
790 |
Noise level (7m) dB(A) |
50Hz:51 60Hz:53 |
Structure type |
Ultra silent |
Engine model |
KH488G |
| Engine type |
Four-cylinder, in-lined four-stroke, direct injection |
| Cylinder NO.-bore*stroke (mm) |
4-88*90 |
| Displacement (ml) |
2190 |
| Rated power (kW) |
16.4/1500 19.6/1800 |
| Compression ratio |
18.2:1 |
| Rated rotation speed (r/min) |
1500 1800 |
| Cooling system |
Water cooled |
| Lubrication system |
Pressure splashed |
| Starting system |
Electric starter |
| Fuel type |
0# (summer)-10# (winter)-35# (chillness) diesel |
| Capacity of cooling water (L) |
12 |
| Lube capacity (L) |
8.5 |
| Starting motor capacity (V-kW) |
12V 1.4kW |
| Charging generator capacity (V-A) |
12V 15A |
| Battery capacity (V-Ah) |
12V 65AH |
| Fuel consumption (g/kWĄ¤h) |
230 258 |
| Fuel tank capacity (L) |
65 |
