Model |

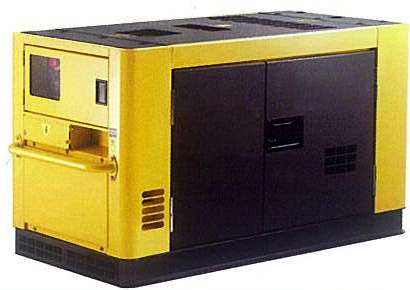

KHC16STA3 |
Rated frequency (Hz) |
50 60 |
Rate output (kVA) |
13.5 15.5 |
Max output (kVA) |
15 17 |
Rated voltage (V) |
230/400 240/416 |
Rated current (A) |
19.5 21.5 |
Rated rotation speed (rpm) |
3000 3600 |
Phase NO. |
Three phase "Y" type connection |
Power factor |
0.8 |
Insulation grade |
F |
Pole number |
2 |
Excitation mode |
Brushless self-excitation and constant voltage (AVR) |
Panel type |
Digital Panel |
Output |
Voltage (V) |
230/240 240/416 |
| Receptacle |
Two single phase receptacles |
| Connection pole |
With |
| DC12V output |
Without |
Overall dimension: L*W*H (mm) |
1540*845*925
1390*700*810 (Without wheels & handle)
|
Dry weight (Kg) |
420 |
Working assorting weight (Kg) |
468 |
Noise level (7m) dB(A) |
72 |
Structure type |
Super silent |
Engine model |
KH376G |
| Engine type |
Three-cylinder, four-stroke, swirl type |
| Cylinder NO.-bore*stroke (mm) |
3-76*73 |
| Displacement (ml) |
993 |
| Rated power (kW) |
13.5/3000 155/3600 |
| Compression ratio |
21.5:1 |
| Rated rotation speed (r/min) |
3000 3600 |
| Cooling system |
Water cooled |
| Lubrication system |
Pressure splashed |
| Starting system |
Electric starter |
| Fuel type |
0# (summer)-10# (winter)-35# (chillness) diesel |
| Capacity of cooling water (L) |
7 |
| Lube capacity (L) |
4.8 |
| Starting motor capacity (V-kW) |
12V 1.4kW |
| Charging generator capacity (V-A) |
12V 25A |
| Battery capacity (V-Ah) |
12V 60AH |
| Fuel consumption (g/kWĄ¤h) |
295 |
| Fuel tank capacity (L) |
38 |
| Continuous running time (hr) |
8.5 |
